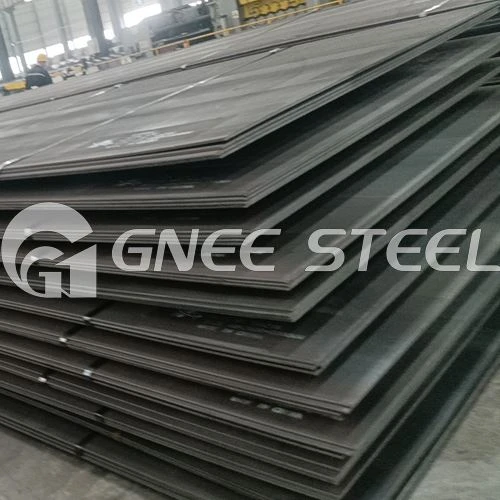

EN 10025 S355JOWP Corten Steel Plates
S355J0WP is a structural weathering steel which is also referred to as atmospheric corrosion resistant steel. The main alloying elements are chromium nickel and copper with added phosphorous which gives it excellent self protecting qualities. As the steel reacts with elements in the atmosphere, the material forms a layer of rust over time which in essence protects the steel from corrosion.
S355J0WP (which is an equivalent grade to Corten A) provides a long lasting and economic structural steel solution for use in applications such as steel bridges stack gas applications and in steel sculptured buildings due to the material's aesthetically pleasing finish.
Grades & Equivalents of S355JOWP Corten Steel
| EN 10025-5:2004 | CORTEN |
|---|---|
| S355JOWP | Corten A |
Mechanical Properties of S355JOWP Weathering Steel
| GRADE | MIN. YIELD STRENGTH REH MPA | TENSILE STRENGTH RM MPA | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Thickness (mm) | Nominal Thickness (mm) | ||||||||
| <16 | >16 <40 | >40 <63 | >63 <80 | >80 <100 | >100 <150 | >3 | >3 <100 | >100 <150 | |
| S355JOWP | 355 | 345 | 510/680 | 470/630 |
Chemical Composition of S355JOWP Corrosion Resistant Steel
| % | |
|---|---|
| C | 0.12 |
| Si | 0.75 |
| Mn | 1.00 |
| P | 0.06/0.15 |
| S | 0.035 |
| N | 0.009 |
| Cr | 0.30/1.25 |
| Cu | 0.25/0.55 |
S355JOW Weathering Steel
Like S355J0WP, S355J0W is a weathering steel and is an equivalent to Corten B.
As the material rusts when exposed to atmospheric elements, the material builds its own protective layer which prevents the steel from further oxidation. Therefore S355J0W, like all weathering steels, offers excellent, cost effective protection against atmospheric conditions without the need for painting or external treatment.
S355J0WP tends to be used for structures which use thinner materials.
Grades & Equivalents OF corten weathering steel
| EN 10025-5:2004 | CORTEN |
|---|---|
| S355JOW | Corten B |
Mechanical Properties of S355JOW corten structural steel
| GRADE | MIN. YIELD STRENGTH REH MPA | TENSILE STRENGTH RM MPA | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Thickness (mm) | Nominal Thickness (mm) | ||||||||
| <16 | >16 <40 | >40 <63 | >63 <80 | >80 <100 | >100 <150 | >3 | >3 <100 | >100 <150 | |
| S355JOW | 355 | 345 | 335 | 325 | 315 | 295 | 510/680 | 470/630 | 450/600 |
Chemical Composition of S355JOW weather resistant steel
| % | |
|---|---|
| C | 0.16 |
| Si | 0.50 |
| Mn | 0.50/1.50 |
| P | 0.035 |
| S | 0.035 |
| N | 0.009 |
| Cr | 0.40/0.80 |
| Cu | 0.25/0.55 |
Grades & Equivalents
| EN 10025-5:2004 | CORTEN |
|---|---|
| S355J2W | Corten B |
Mechanical Properties of S355J2W corten steel structure
| GRADE | MIN. YIELD STRENGTH REH MPA | TENSILE STRENGTH RM MPA | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Thickness (mm) | Nominal Thickness (mm) | ||||||||
| <16 | >16 <40 | >40 <63 | >63 <80 | >80 <100 | >100 <150 | >3 | >3 <100 | >100 <150 | |
| S355J2W | 355 | 345 | 335 | 325 | 315 | 295 | 510/680 | 470/630 | 450/600 |
Chemical Composition of S355J2W weathering corten steel
| % | |
|---|---|
| C | 0.16 |
| Si | 0.50 |
| Mn | 0.50/1.50 |
| P | 0.030 |
| S | 0.030 |
| N | 0.009 |
| Cr | 0.40/0.80 |
| Cu | 0.25/0.55 |
