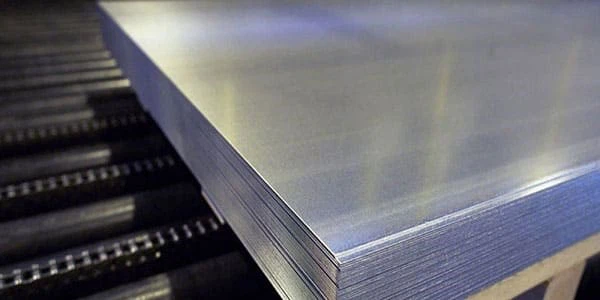

Thickness of 304 stainless steel plate
Thickness of 304 stainless steel plate
The thickness of 304 stainless steel sheet depends on its intended application, ranging from as thin as 0.25 mm to as thick as 150 mm or more. Key factors to consider include the specific application, required strength, and surface finish, as these factors will determine the appropriate thickness and its associated tolerances according to standards such as ASTM A240. Thicker sheets offer higher strength, while thinner sheets are suitable for lighter, decorative, or high-impact environments.
What are the standards for 304 stainless steel sheet?
304 and 304L ASTM A240 stainless steel sheets belong to the 18-8 standard material, meaning they contain 18% chromium and 8% nickel. 304 stainless steel sheet is one of the most widely used stainless steel materials, possessing excellent formability and weldability.
Stainless steel is an extremely versatile material, widely used in various industries and fields such as food processing, medical equipment, construction, and transportation. 304 stainless steel sheet is particularly favored for its corrosion resistance, durability, and aesthetic appeal. When selecting stainless steel sheet, thickness is one of the key factors to consider, as it affects the sheet's strength, appearance, and suitability for specific applications.
This article will discuss the thickness of 304 stainless steel sheet in detail, including its standard dimensions, thickness tolerances, and application areas.
Standard Sizes of 304 Stainless Steel Sheet
304 stainless steel sheet is available in a wide range of thicknesses, from ultra-thin sheets measuring as little as 0.4mm to thick plates up to 150mm thick. However, several standard sizes are commonly used in various industries and applications.
The most common sizes for 304 stainless steel sheets are:
1000mm x 2000mm
1219mm x 2438mm
1250mm x 2500mm
1500mm x 3000mm
Other sizes are available upon request. We can provide custom cutting services and processes according to customers' requirements.
304 Stainless Steel Sheet Thickness Tolerance
Regarding the thickness of 304 stainless steel sheets, it's important to note that there exists a tolerance range. This means that the actual thickness of the sheet may deviate slightly from the nominal thickness (usually measured in millimeters or inches).
The thickness tolerance of 304 stainless steel sheets varies depending on the specific standard or specification. Typically, the tolerance range is approximately ±0.05 mm to ±0.5 mm, but some standards or specifications may have stricter requirements for tolerances.
For example, according to ASTM A240, the thickness tolerances for 304 stainless steel sheet are as follows:
Sheet thickness not exceeding 4.76 mm: ±0.13 mm
Sheet thickness exceeding 4.76 mm to 6.35 mm: ±0.15 mm
Sheet thickness exceeding 6.35 mm to 25.4 mm: ±0.20 mm
Sheet thickness exceeding 25.4 mm to 38.1 mm: ±0.25 mm
It is important to note that thickness tolerances can affect the suitability of the sheet material for a specific application. For example, if the sheet material is used as a structural component, its thickness tolerances may be more stringent than those for decorative purposes only.
Applications of 304 Stainless Steel Sheet Thickness
The thickness of 304 stainless steel sheet significantly affects its applicability in various applications. Below are some common application examples of 304 stainless steel sheet thicknesses across industries:
(1) Thin Sheets (less than 0.6 mm):
Thin 304 stainless steel sheets are commonly used in the electronics industry for manufacturing connectors, sensors, and switches. They are also used in the automotive industry for manufacturing exhaust systems, mufflers, and catalytic converters.
(2) Medium Sheets (0.6 mm to 3.0 mm):
Medium 304 stainless steel plates are commonly used in the construction industry for manufacturing roofing, cladding, wall panels, and structural components. They are also used in the food and beverage industry for manufacturing storage tanks, pipes, and processing equipment.
(3) Thick Sheets (thickness exceeding 3.0 mm):
Thick 304 stainless steel plates are commonly used in the aerospace industry for manufacturing aircraft components such as engine parts, landing gear, and structural components. They are also used in the oil and gas industry for manufacturing pressure vessels, pipes, and storage tanks.
304 stainless steel is used in various industries due to its excellent properties and wide range of applications. The thickness of the sheet material determines its specific application, and choosing the appropriate thickness is crucial to ensuring that the material performs at its best in a particular application.
