In aerospace instrumentation and nuclear reactor monitoring, precision is measured in micrometers, not millimeters. For engineers, a major pain point when sourcing GH3030 capillaries is dimensional deviation (tolerance drift).
Standard commercial-grade capillaries often have inconsistent outer diameters (ODs) and wall thicknesses. Even a deviation of 0.02 mm can lead to:
Assembly failures: Seizing or leaking components when integrating fuel injectors or sensor housings.
Thermal fatigue: Premature failure due to localized "weak points" during thermal cycling.
Sensor errors: Variations in inner diameter roughness (Ra) can cause unstable pressure or flow readings.
At Gnee Alloy, we eliminate these risks. Our precision seamless capillaries, produced using a centerless grinding process, ensure a "perfect fit" every time, providing absolute structural integrity for your high-risk projects.
Click to get a GH3030 product quote

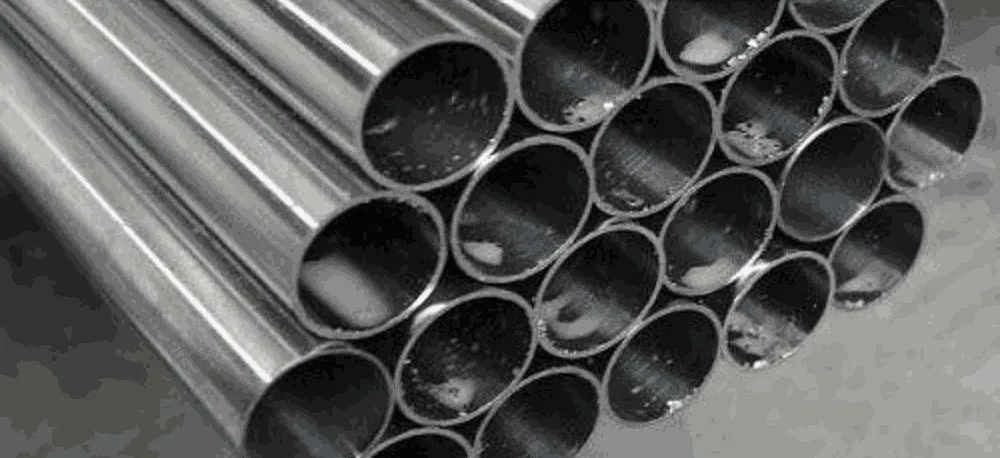

GH3030 h8-h11 precision seamless tubes for aerospace applications
GH3030 h8-h11 precision seamless tubes for aerospace applications
GH3030 H8-H11 precision seamless steel tubing is a high-grade nickel-chromium superalloy tubing designed specifically for extreme thermal and mechanical environments. These aerospace-grade steels offer oxidation resistance up to 1100°C, excellent fatigue life, and tight dimensional tolerances, making them ideal for high-stress aerospace applications.
What is the composition of GH3030?
GH3030 is a solid solution strengthened high-temperature alloy, mainly composed of nickel (Ni) and chromium (Cr), with a simple chemical composition. Its typical ratio is 80% nickel and 20% chromium.
1. GH3030 Precision Seamless Tube Product Overview
| Parameter | Description |
|---|---|
| Material | GH3030 |
| Product Form | Precision Seamless Tube |
| Manufacturing Process | Cold Drawn / Cold Pilgered |
| Surface Condition | Bright Annealed (BA) / Annealed & Pickled (AP) / Polished |
| Applicable Standards | GB/T 14994, GB/T 14996, YB/T 5249 |
| Typical Applications | Aircraft engine lines, instrumentation tubes, high-temperature sensor sheaths, precision hydraulic tubes |
| Maximum Service Temperature (Load-Bearing) | ~800°C |
| Maximum Service Temperature (Oxidation) | ~1000°C |
2. GH3030 Precision Seamless Tube (Chemical Composition) (wt%)
| Element | Content (%) | Notes |
|---|---|---|
| Nickel (Ni) | Balance (≥ 75.0) | Matrix element; high-temperature stability |
| Chromium (Cr) | 19.0 – 22.0 | Provides oxidation and corrosion resistance |
| Iron (Fe) | ≤ 1.0 | Tube specification requires ≤1.0% (stricter than bar/plate) |
| Titanium (Ti) | 0.15 – 0.35 | Supplementary solid-solution strengthening |
| Aluminum (Al) | ≤ 0.15 | Strictly controlled to prevent harmful phase formation |
| Carbon (C) | ≤ 0.12 | Low carbon for weldability and toughness |
| Manganese (Mn) | ≤ 0.70 | Deoxidizer |
| Silicon (Si) | ≤ 0.80 | Deoxidizer |
| Phosphorus (P) | ≤ 0.015 | Tube specification requires ≤0.015% (stricter) |
| Sulfur (S) | ≤ 0.010 | Tube specification requires ≤0.010% (stricter) |
| Copper (Cu) | ≤ 0.007 | Tube specification has stricter Cu limit (≤0.007%) |
3. Mechanical properties of GH3030 precision seamless tubes (solution treatment and aging treatment)
| Tensile Strength (σb) | ≥ 590 MPa |
| Yield Strength (σp0.2) | ≥ 245 MPa |
| Elongation (δ5) | ≥ 35% |
| Melting Range | 1374°C – 1420°C |
| Max Service Temp | 800°C (1472°F) for continuous oxidation resistance |
Click to download the GH3030 alloy PDF file now

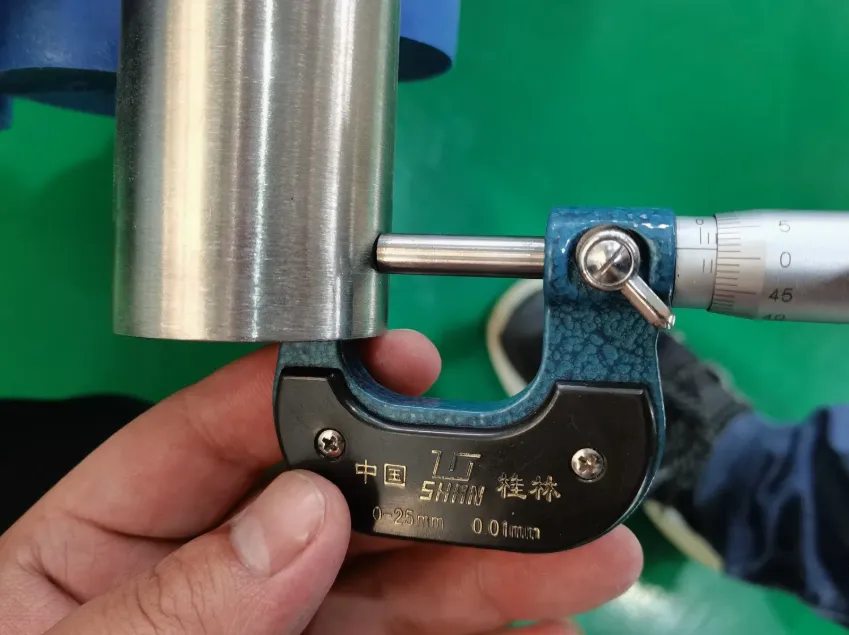

4. GH3030 precision seamless tube dimensional accuracy: H8 to H11 tolerance grades
| Parameter | Standard Capability | Our "Premium" Grade | Commercial Advantage |
| Tolerance Class | h12 - h13 | h8, h9, h10, h11 | Zero-interference assembly. |
| Diameter (OD) | 0.5 mm - 10.0 mm | Custom Sizing | Ultra-fine instrumentation. |
| Surface Finish | Ra 1.6 μm | Ra ≤ 0.4 μm (BA) | Mirror bright; no scale. |
| Concentricity | ≤ 10% | ≤ 5% Deviation | Uniform pressure safety. |
| Straightness | ≤ 1.5mm/m | ≤ 0.3mm/m | Optimized for CNC feeders. |
5. GH3030 Precision Tube Dimensions and Specifications
OD and Wall Thickness Range
| OD (mm) | OD (in) | Wall Thickness (mm) | Wall Thickness (in) | Typical Application |
|---|---|---|---|---|
| 3.0 – 6.0 | 0.118 – 0.236 | 0.3 – 1.0 | 0.012 – 0.039 | Instrumentation tubes |
| 6.0 – 10.0 | 0.236 – 0.394 | 0.5 – 1.5 | 0.020 – 0.059 | Aircraft control lines |
| 10.0 – 20.0 | 0.394 – 0.787 | 0.8 – 2.5 | 0.031 – 0.098 | Fuel lines |
| 20.0 – 30.0 | 0.787 – 1.181 | 1.0 – 3.0 | 0.039 – 0.118 | Hydraulic lines |
| 30.0 – 50.0 | 1.181 – 1.968 | 1.5 – 5.0 | 0.059 – 0.197 | High-temperature sensor sheaths |
| 50.0 – 100.0 | 1.968 – 3.937 | 2.0 – 8.0 | 0.079 – 0.315 | High-temperature furnace tubes |
Dimensional Tolerances (Precision Grade)
| Parameter | Range | Precision Tolerance |
|---|---|---|
| OD (≤ 10 mm) | – | ±0.03 – ±0.05 mm |
| OD (10 – 30 mm) | – | ±0.05 – ±0.10 mm |
| OD (30 – 50 mm) | – | ±0.10 – ±0.15 mm |
| OD (50 – 100 mm) | – | ±0.15 – ±0.30 mm |
| Wall Thickness | All | ±5% – ±8% |
| Length | 3000 – 12000 mm | ±1 mm |
| Ovality | – | ≤ 0.5% of OD |
| Wall Concentricity | – | ≤ 8% of wall thickness |
| Straightness | – | ≤ 0.5 mm/m |

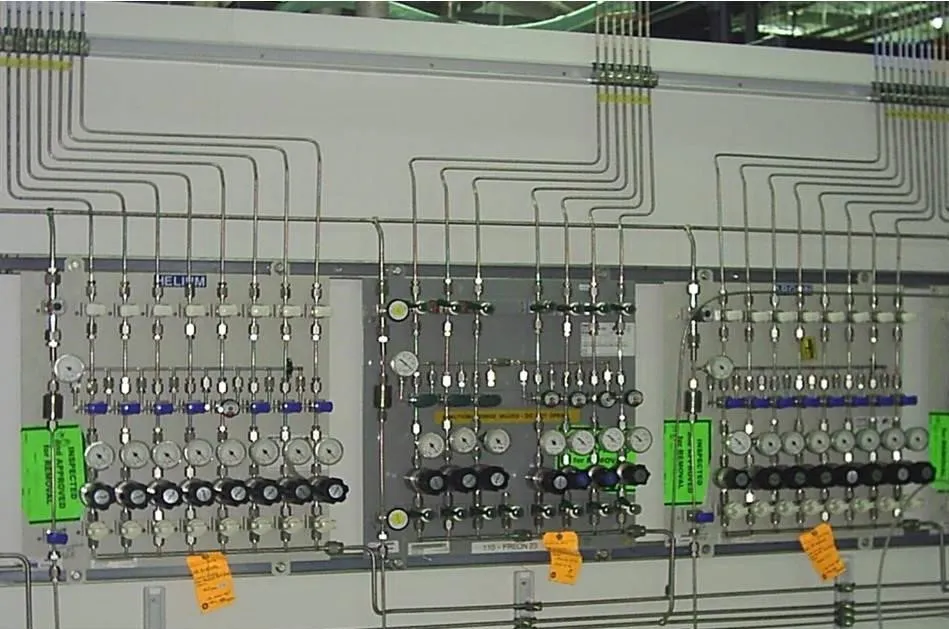

6. Applications of GH3030 precision seamless tubes

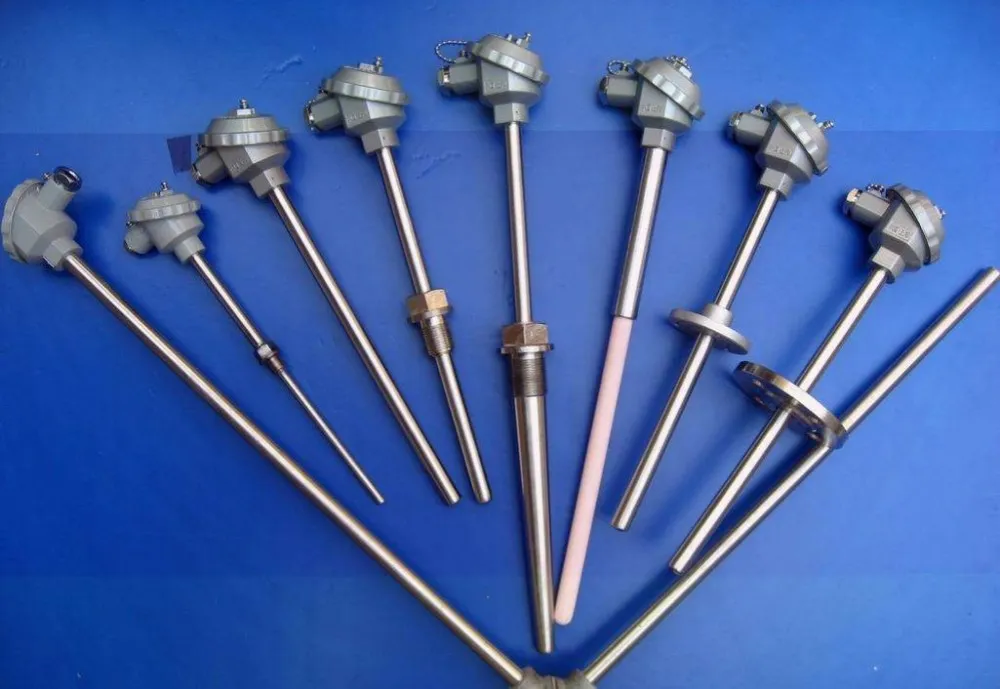

Aerospace Sensors: Protective capillary sleeves for pressure and flow probes.
Nuclear Instrumentation: High-purity transport lines for radioactive tracers.

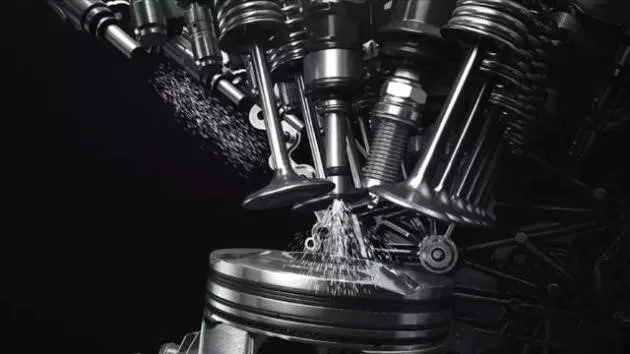

Fuel Injectors: Precision conduit for high-temperature aviation fuel.
Medical Devices: Specialized high-strength tubing for extreme environment probes.
7. Why Source From Our Tier-1 Facility?
Direct Factory Price: Eliminate middleman markups and secure Wholesale Pricing for both R&D batches and mass production.
MTC 3.1 Traceability: Full EN 10204 3.1 documentation, including grain size verification (Level 8 or finer) and roughness reports.
100% NDT Verification: Every single meter of tubing undergoes Eddy Current (ET) and Ultrasonic (UT) testing to guarantee a Zero-Defect product.
Global Fast Shipping: We maintain an inventory of standard precision sizes ready for immediate dispatch to the USA, Europe, and Asia.

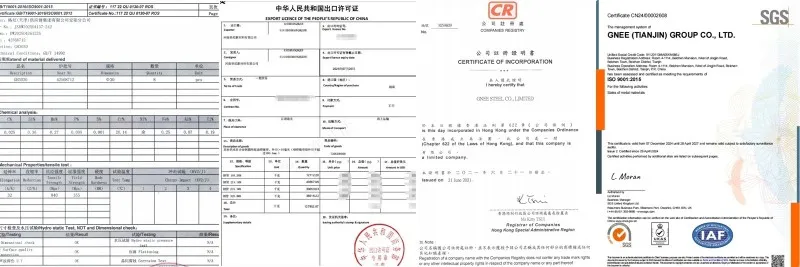

Gnee Alloy GH3030 certificate
Contact us now to get the latest export price for GH4169 in 2026
FAQ
Q1: How do you guarantee the ID is clean enough for aerospace sensors?
A: We utilize Vacuum Bright Annealing (BA). By heat-treating the tubes in a high-purity hydrogen atmosphere, we prevent oxidation, ensuring the internal diameter is mirror-bright and free from scale or debris.
Q2: Is GH3030 interchangeble with Nimonic 75 in nuclear blueprints?
A: Yes. GH3030 is an equivalent material in the GB system that has the same metallurgical system as UNS N06075. We provide a certificate proving that its chemical composition and mechanical properties are completely identical.
Q3: Can you produce custom non-standard wall thicknesses (e.g., 0.15mm)?
A: Absolutely. As a Manufacturer, we specialize in Custom Fabrication. Our cold-drawing benches can reach wall thicknesses as thin as 0.05mm for specialized capillary needs.
Q4: Do you offer bulk discounts for long-term MRO contracts?
A: Yes. We support long-term partners with attractive volume-based pricing and dedicated inventory reserves to ensure your supply chain is never interrupted.
