In the extreme environments of aerospace propulsion systems, AMS 5581 Inconel 625 is the industry's "safety pillar." For engineers and MRO (Maintenance, Repair, and Overhaul) specialists, the main pain point in engine "fire zones" lies in the combined effects of high-frequency vibration and extreme thermal cycling.
Gnee Alloy, as a professional Tier-1 manufacturer, supplies seamless and welded GH3625 (Alloy 625) tubing, designed specifically for structural integrity from cryogenic temperatures up to 980°C (1800°F).
Click to get an Inconel 625 product quote
Top 5 Applications of AMS 5581 Inconel 625 in Aircraft
Top 5 Applications of AMS 5581 Inconel 625 in Aircraft
AMS 5581 is a specification for Inconel 625 (UNS N06625) seamless and welded tubing in the aerospace industry. This material is highly valued for its excellent high-temperature strength, fatigue resistance, and oxidation resistance, and is primarily used in high-temperature applications of aircraft, high-pressure fluid transport, and structural components exposed to corrosive environments.
What are the disadvantages of Inconel 625?
Disadvantages: High cost: Due to its complex composition and high production costs, Inconel 625 is significantly more expensive than many other materials. Difficult to process: The toughness of Inconel 625 makes it more difficult to process, requiring specialized tools and techniques.
1. Chemical composition of AMS 5581 Inconel 625 alloy (wt%)
| Element | Content (%) | AMS 5581 Requirement | Function |
|---|---|---|---|
| Nickel (Ni) | ≥ 58.0 (Balance) | ≥ 58.0 | Matrix element; corrosion resistance and high-temperature stability |
| Chromium (Cr) | 20.0 – 23.0 | 20.0 – 23.0 | Oxidation and corrosion resistance |
| Molybdenum (Mo) | 8.0 – 10.0 | 8.0 – 10.0 | Core element – provides pitting and crevice corrosion resistance |
| Niobium (Nb) | 3.15 – 4.15 | 3.15 – 4.15 | Solid-solution strengthening; carbide stabilizer |
| Iron (Fe) | ≤ 5.0 | ≤ 5.0 | Residual element |
| Titanium (Ti) | ≤ 0.40 | ≤ 0.40 | Supplementary strengthening |
| Aluminum (Al) | ≤ 0.40 | ≤ 0.40 | Supplementary strengthening |
| Carbon (C) | ≤ 0.10 | ≤ 0.10 | Low carbon for weldability and corrosion resistance |
| Manganese (Mn) | ≤ 0.50 | ≤ 0.50 | Deoxidizer |
| Silicon (Si) | ≤ 0.50 | ≤ 0.50 | Deoxidizer |
| Phosphorus (P) | ≤ 0.010 | ≤ 0.015 | Stricter for aerospace – ensures toughness |
| Sulfur (S) | ≤ 0.005 | ≤ 0.015 | Stricter for aerospace – ensures hot workability |
| Cobalt (Co) | ≤ 1.0 | ≤ 1.0 | Residual element |
| Copper (Cu) | ≤ 0.07 | - | Residual element |
2. AMS 5581 Inconel 625 alloy room temperature mechanical properties
| Property | AMS 5581 Requirement | Typical Value | Test Standard |
|---|---|---|---|
| Tensile Strength, Ultimate | ≥ 830 MPa (120 ksi) | 900 – 950 MPa | ASTM E8 / AMS 2370 |
| Tensile Strength, Yield (0.2% Offset) | ≥ 415 MPa (60 ksi) | 450 – 500 MPa | ASTM E8 / AMS 2370 |
| Elongation at Break | ≥ 30% | 35 – 45% | ASTM E8 / AMS 2370 |
| Reduction of Area | Not specified | 50 – 60% | ASTM E8 |
| Hardness (Rockwell B) | ≤ 96 HRB | 90 – 95 HRB | ASTM E18 |
| Modulus of Elasticity | ~207 GPa (30.0 × 10⁶ psi) | - | ASTM E111 |
| Poisson's Ratio | 0.29 – 0.30 | - | - |
Click to download the Inconel 625 alloy PDF file now
3. Five major applications of AMS 5581 Inconel 625 in the aviation field

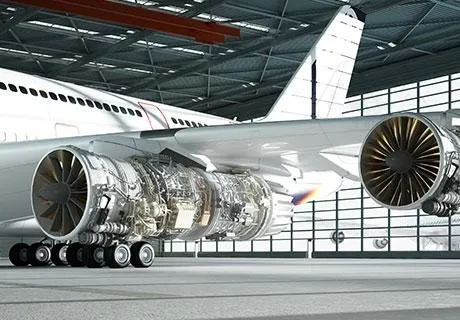

Aircraft Exhaust Systems
Due to its excellent thermal fatigue strength and resistance to high-temperature exhaust gases, this material is widely used in tailpipes, vectoring nozzles, mufflers, and exhaust bellows.
Jet Engine Bleed Air and Duct Systems
Inconel 625 is ideal for hot air ducts and environmental control systems because it can withstand continuous thermal cycling and high-pressure air without deformation.
Fuel and Hydraulic Lines
The alloy's excellent tensile strength and creep resistance make it ideal for the safe delivery of high-pressure hydraulic fluid and fuel within aircraft.
Thrust Reverse Systems
These systems are located in high-stress, secondary high-temperature regions, relying on Inconel alloys to maintain structural integrity and oxidation resistance when exposed to high temperatures during landing.
Engine Control Cables and Sensor Bellows
The material's good flexibility when made into thin-walled tubes and its high corrosion resistance make it ideal for wire rope conduits and submerged or protective control bellows.
Please consult AMS 5581 for compliant pricing and real-time inventory list
4. AMS 5581 625 Alloy Application Matrix
| Application Sector | Component Name | Key Technical Benefit | Why It Matters (Commercial ROI) |
| Engine Fuel Systems | Fuel Manifolds | Prevents internal scale contamination. | Reduces injector maintenance by 40%. |
| Exhaust Systems | Tailpipes & Bellows | Elite Thermal Fatigue resistance. | Extends component life in 800°C zones. |
| Flight Control | Hydraulic Actuators | High-pressure integrity; Zero Leakage. | Guaranteed safety at 5000+ PSI. |
| Heat Exchangers | Condenser Tubing | Elite pitting resistance in brine. | Critical for naval and coastal aircraft. |
| Thrust Reversers | Actuation Lines | Resists severe cycling without sagging. | Prevents structural warpage during landing. |
5. Gnee Alloy VIM+VAR Manufacturing Process Advantages
The superior performance of our UNS N06625 tubing stems from our unique dual vacuum refining process:
VIM + VAR Purity: Our dual vacuum refining process eliminates non-metallic inclusions, ensuring an ultra-clean matrix that maximizes the high-cycle fatigue (HCF) life of parts.
Precision Concentricity: We guarantee wall thickness deviation ≤5%, providing a uniform safety factor to prevent localized pressure failure.
Vacuum Bright Annealing (BA): Ensures a mirror-like inner diameter (Ra ≤ 0.4μm), crucial for "oxygen cleanliness" and zero-impurity fuel delivery.

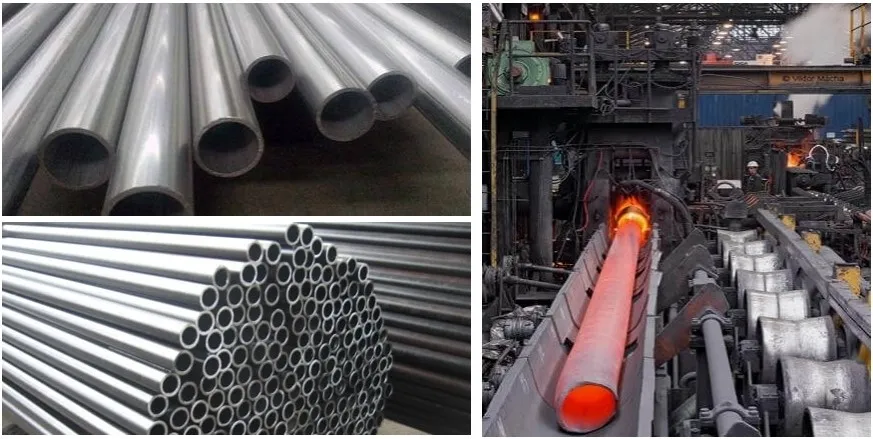

VIM+VAR Manufacturing Process
6. Why choose to partner with Gnee Alloy?
✅️Massive Wholesale Inventory: We maintain a strategic stock of standard aerospace diameters (1/4" to 2" NPS) ready for Fast Global Shipping.
✅️MTC 3.1 & 3.2 Traceability: Full EN 10204 compliance documenting chemical heat analysis and room/high-temp mechanical verification.
✅️Direct Factory Price: Eliminate middleman markups and secure the best rates for bulk OEM and MRO programs.
✅️Custom Fabrication: We offer precision Cut-to-Length, deburring, and specialized U-bending for aircraft heat exchangers.
Click to contact us and view my system certificates
Gnee Alloy Product Packaging
All stainless steel products are:
✅️Packed in wooden pallets or crates
✅️Covered with moisture-proof wrapping
✅️Labeled with heat number, standard, and size
✅️Shipped worldwide via sea, air, or express
Gnee Alloy 625 Alloy Packaging
Gnee Alloy Production Equipment and Product Testing
Contact us now to get the latest export price for Inconel 625 in 2026
FAQ
Q1: Can AMS 5581 replace standard ASTM B444 in aerospace designs?
A: No. While the chemistry is similar, AMS 5581 is much more stringent regarding grain size control and non-destructive testing (NDT). Using industrial-grade B444 on an aerospace blueprint will lead to Audit Rejection and safety risks.
Q2: How does Inconel 625 handle cryogenic rocket fuels?
A: Exceptional. Inconel 625 maintains its ductility and fracture toughness down to -196°C (-320°F) and lower, making it the premier choice for liquid hydrogen and oxygen transport lines in space propulsion.
Q3: What NDT (Non-Destructive Testing) do you perform for aircraft tubing?
A: Every meter of our tubing undergoes 100% Ultrasonic Testing (UT) and Eddy Current Testing (ET) to ensure zero internal voids or surface cracks, ensuring absolute Zero-Leakage reliability.
Q4: Do you offer bulk discounts for major fleet maintenance programs?
A: Yes. We support long-term MRO contracts with tiered Wholesale Pricing and priority inventory scheduling for our global partners.
