Many engineers choose GH4169 (equivalent to Alloy 718) for chemical treatment because of its extremely high strength, only to find that the pipe walls perforate due to pitting corrosion within weeks. Conversely, if Hastelloy C276 is used for a rotating turbine shaft at 700°C, deformation occurs immediately due to its lack of necessary mechanical stiffness.
The choice between GH4169 and Hastelloy C276 is not about which is "better," but about balancing mechanical loads and chemical corrosion. At Gnee Alloy, we help you optimize your material lifecycle by ensuring that materials meet actual operating stresses.
GH4169 (Inconel 718) and Hastelloy C276 Pipes: High Temperature and Corrosion Resistance Comparison
GH4169 (Inconel 718) and Hastelloy C276 Pipes: High Temperature and Corrosion Resistance Comparison
GH4169 (Inconel 718) and Hastelloy C276 are premium nickel-based alloys designed for extreme environments. GH4169 offers exceptional high-temperature structural strength (up to 980°C), while Hastelloy C276 excels in resistance to severe mixed chemical corrosion. GH4169 is ideal for aerospace fasteners/turbines; C276 is the preferred material for chemical piping.
What is the rated temperature of Hastelloy C276?
C-276 alloy can operate in oxidizing atmospheres up to 1900°F (1038°C), but its insufficient chromium content prevents it from functioning properly in highly oxidizing environments (such as high-temperature concentrated nitric acid).
Properties and Applications of GH4169 and Hastelloy C276 Alloys
GH4169 (Alloy 718)
GH4169 is a precipitation-hardening nickel-chromium superalloy. Its "super strength" lies in the γ′′ (γ′) phase, making it one of the strongest metals usable at temperatures up to 700°C.
Key Advantages: Excellent mechanical strength. It maintains its yield strength even under strong centrifugal forces or internal pressure.
Limitations: While it is resistant to oxidation, it is not suitable for corrosion by concentrated hydrochloric acid or concentrated sulfuric acid.
Optimal Applications: Aircraft engine components, high-pressure fuel lines, turbine shafts, and high-strength structural springs.
Hastelloy C276 (UNS N10276)
Hastelloy C276 is a solid solution-strengthened alloy with high molybdenum (16%) and tungsten content. It is the gold standard for dealing with "extreme" chemical environments. Key Advantages: Excellent corrosion resistance. It is virtually unaffected by chloride stress corrosion cracking (SCC) and strong oxidizing salts.
Limitations: It lacks the aging stage of GH4169, meaning its mechanical strength decreases significantly above 500°C.

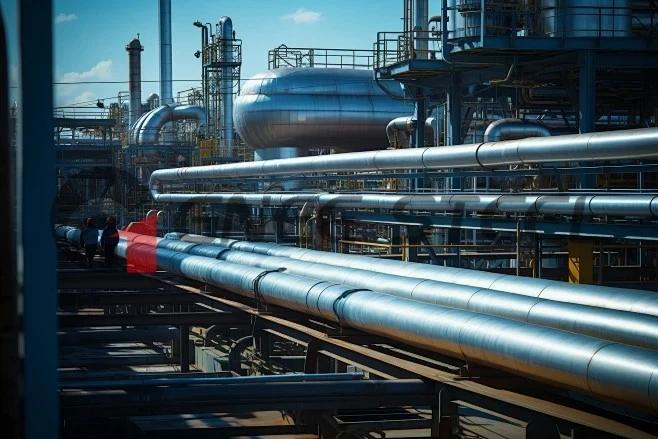

Optimal Applications: Chemical reactors, flue gas desulfurization (FGD), pharmaceutical pipelines, and acid gas (H2S) transport.
3. Comparison of chemical composition (weight percentage) of GH4169 and Hastelloy C276 alloys
| Element | GH4169 (Inconel 718) | Hastelloy C-276 | Key Difference |
|---|---|---|---|
| Nickel (Ni) | 50.0 – 55.0 | 57.0 min (Balance) | C-276 slightly higher Ni |
| Chromium (Cr) | 17.0 – 21.0 | 14.5 – 16.5 | GH4169 higher Cr |
| Molybdenum (Mo) | 2.80 – 3.30 | 15.0 – 17.0 | C-276 has 5x more Mo |
| Iron (Fe) | Balance (~18-20) | 4.0 – 7.0 | GH4169 has much higher Fe |
| Tungsten (W) | – | 3.0 – 4.5 | C-276 contains W |
| Niobium (Nb) | 4.75 – 5.50 | – | GH4169 contains Nb |
| Titanium (Ti) | 0.65 – 1.15 | – | GH4169 contains Ti |
| Aluminum (Al) | 0.20 – 0.80 | – | GH4169 contains Al |
| Cobalt (Co) | ≤ 1.00 | ≤ 2.5 | Similar |
| Carbon (C) | ≤ 0.08 | ≤ 0.01 | C-276 lower C |
| Vanadium (V) | – | ≤ 0.35 | C-276 contains V |
| Silicon (Si) | ≤ 0.35 | ≤ 0.08 | – |
| Manganese (Mn) | ≤ 0.35 | ≤ 1.0 | – |
| Phosphorus (P) | ≤ 0.015 | ≤ 0.04 | – |
| Sulfur (S) | ≤ 0.015 | ≤ 0.03 | – |
Click to download the GH4169 alloy PDF file now
4. Comparison of room temperature mechanical properties of GH4169 and Hastelloy C276 alloys
| Property | GH4169 (718) (Aged) | Hastelloy C-276 (Annealed) | Advantage |
|---|---|---|---|
| Tensile Strength, Ultimate (MPa) | ≥ 1275 (185 ksi) | ≥ 690 (100 ksi) | GH4169 |
| Tensile Strength, Yield (MPa) | ≥ 1035 (150 ksi) | ≥ 283 (41 ksi) | GH4169 |
| Elongation (%) | ≥ 12 | ≥ 40 | C-276 |
| Reduction of Area (%) | ≥ 15 | ≥ 50 | C-276 |
| Hardness (HRC) | 35 – 40 | ~87 HRB (~18 HRC) | GH4169 |
| Modulus of Elasticity (GPa) | ~200 | ~205 | Similar |
| Density (g/cm³) | 8.19 | 8.89 | GH4169 |
5. Comparison of corrosion resistance between GH4169 alloy and Hastelloy C276 alloy
| Environment | GH4169 (718) | Hastelloy C-276 | Advantage |
|---|---|---|---|
| Oxidizing Acids (HNO₃) | Good | Good | Similar |
| Reducing Acids (HCl, H₂SO₄) | Poor | Excellent | C-276 |
| Chloride Pitting | Moderate | Excellent | C-276 |
| Crevice Corrosion | Moderate | Excellent | C-276 |
| Chloride SCC | Good | Excellent | C-276 |
| Seawater | Limited | Excellent | C-276 |
| High-Temperature Oxidation (to 980°C) | Good | Good | Similar |
6. Comparison of high-temperature mechanical properties of GH4169 alloy and Hastelloy C276 alloy
| Temp (°C) | Property | GH4169 (718) | Hastelloy C-276 |
|---|---|---|---|
| 500 | Tensile (MPa) | ~1150 | ~650 |
| Yield (MPa) | ~950 | ~260 | |
| 600 | Tensile (MPa) | ~1100 | ~600 |
| Yield (MPa) | ~900 | ~240 | |
| 650 | Tensile (MPa) | ~1000 | ~550 |
| Yield (MPa) | ~850 | ~220 | |
| 700 | Tensile (MPa) | ~850 | ~450 |
| Yield (MPa) | ~750 | ~180 | |
| 800 | Tensile (MPa) | ~500 | ~300 |
| Yield (MPa) | ~450 | ~150 |
7.Comparison table of GH4169 and Hastelloy C276 alloy technologies
| Feature | GH4169 (Inconel 718 Equivalent) | Hastelloy C276 (Alloy C276) | Industrial Verdict |
| Strengthening Method | Precipitation (Aging) | Solid Solution (High Purity) | GH4169 is much "Stiffer." |
| Max Service Temp (Load) | 700°C (1292°F) | 400°C - 500°C (Varies) | GH4169 for Structural Heat. |
| Yield Strength (MPa) | ≥ 1030 MPa | ≥ 355 MPa | GH4169 is 3x Stronger. |
| PREN Value (Pitting) | ~ 31 | **~ 45 - 52 (Superior)** | C276 won't perforate in acid. |
| Acid Resistance | Moderate (Oxidation only) | Elite (HCl, H2SO4, Chlorides) | C276 is mandatory for chemicals. |
| Fabrication | Challenging (Hardens fast) | Excellent (Very Ductile) | C276 is easier to weld. |
Contact our professionals to recommend the right alloy for your project
8. How to Choose Between GH4169 and Hastelloy C276 Pipes?
If your piping system needs to withstand extreme internal pressure or centrifugal forces up to 700°C, choose GH4169 seamless steel pipe. If your components cannot experience "stretching" or "creep" under load, GH4169 is your only cost-effective solution.
If your equipment is exposed to ferric/copper chloride, high-temperature contaminated media, or wet chlorine gas, choose Hastelloy C276 steel pipe. If preventing pitting and stress corrosion cracking is your primary concern, C276 offers optimal industrial durability.
9. Why source from Tier 1 manufacturer Gnee Alloy?
As professional superalloy experts, Gnee Alloy ensures zero-defect quality:
✅️VIM + VAR Melting: Ensuring ultra-pure GH4169 to maximize fatigue life and remove inclusions.
✅️MTC 3.1 Traceability: Full EN 10204 3.1 Mill Test Certificates documented with every heat number.
✅️Wholesale Inventory: Massive stock of Seamless Tubing, Round Bars, and Sheets ready for Fast Global Shipping.
✅️Custom Fabrication: We offer precision cutting, centerless grinding (h8-h11), and specialized bending services.
Contact us now to get the latest export price for GH4169 in 2026
FAQ
Q1: Can GH4169 handle hydrogen embrittlement better than C276?
A: Both alloys have good resistance due to their stable austenite matrix. However, GH4169 is often preferred for high-pressure hydrogen storage fuel lines due to its superior strength-to-weight ratio.
Q2: Which alloy is easier to weld for complex reactor internals?
A: Hastelloy C276 is the winner. It can be used in the as-welded condition without the need for post-weld heat treatment. GH4169 requires a complex Double-Aging cycle to reach its strength after welding.
Q3: Is GH4169 interchangeable with Inconel 718 in my blueprint?
A: Absolutely. GH4169 is the technical equivalent of Inconel 718. We provide materials that comply with AMS 5662, AMS 5596, and ASTM B637, ensuring Global Compliance.
