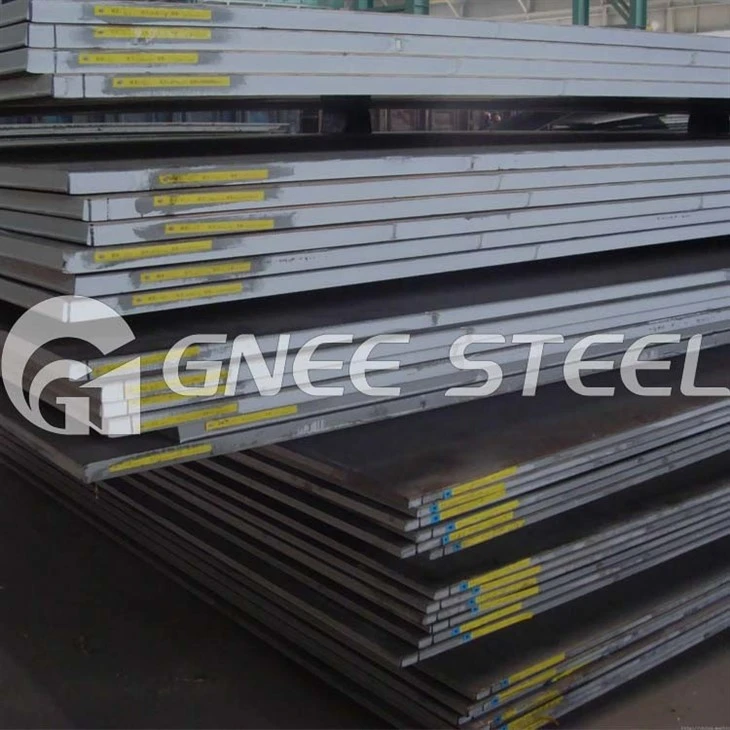

AH40 steel plate is mainly used for shipbuilding and oil platform, the shipbuilding grade AH40 can be used in the manufacture of the ship's hull structure, whose weight is more then 10000 tons. Shipbuilding grade AH40 is the high tensile strength steel, AH40 steel for shipbuilding and oil platform must be good toughness properties, higher strength, strong corrosion-resistance, the processing properties, and welding properties.
AH40 shipbuilding steel plate specification:
Thickness: 6mm-200mm, Width: 1500mm-4000mm, Length: 6000mm-180000mm
ABS Grade AH40 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | Als | Nb | V | Ti max. | Cu max. | Cr max. | Ni max. | Mo max. | N max. |
|
0.18 |
0.50 | 0.90-1.60 |
0.030 |
0.030 |
0.015 | 0.02-0.05 | 0.05-0.10 | 0.02 | 0.35 | 0.20 | 0.40 | 0.08 |
- |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 390 | 510-660 | 20 |
ABS Grade DH40 shipbuilding steel plate
GNEE Steel can supply ABS Grade DH40 shipbuilding steel plate/ marine steel plate, mainly used in construction for ships.
Production Size: Thickness: 4mm- 200mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.
Production ability:10000 Tons Per Month.
Production Way: Hot Rolled
Techanical Details:
Heat Treatment: Normalized, Quenched, Tempered, Impact Test,..( Optional if not provided in rules)
|
Grade/ Material |
Element |
Composition( Max-A, Min-I) |
|
ABS Grade DH40/ ABS DH40 |
C |
0.18 |
|
Mn |
0.90- 1.60 |
|
|
Si |
0.10- 0.50 |
|
|
P |
0.035 |
|
|
S |
0.035 |
Chemical Composition( %):
Mechanical Properties( Mpa)
|
Grade/ Material |
Tensile Test |
Ksi/MPa |
|
ABS Grade DH40/ ABS DH40 |
Tensile Strength |
74-94/ 490-620 |
|
Yield Strength |
57/ 390 |
|
|
Elongation |
I: 19% |
|
|
Impact Test( if any) |
-20℃ |
ABS Grade EH40 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | Als | Nb | V | Ti max. | Cu max. | Cr max. | Ni max. | Mo max. | N max. |
|
0.18 |
0.50 | 0.90-1.60 |
0.025 |
0.025 |
0.015 | 0.02-0.05 | 0.05-0.10 | 0.02 | 0.35 | 0.20 | 0.40 | 0.08 |
- |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 390 | 510-660 | 20 |
ABS Grade FH40 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | Als | Nb | V | Ti max. | Cu max. | Cr max. | Ni max. | Mo max. | N max. |
|
0.16 |
0.50 | 0.90-1.60 |
0.020 |
0.0.20 |
0.015 | 0.02-0.05 | 0.05-0.10 | 0.02 | 0.35 | 0.20 | 0.80 | 0.08 |
0.009 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 390 | 510-660 | 20 |
