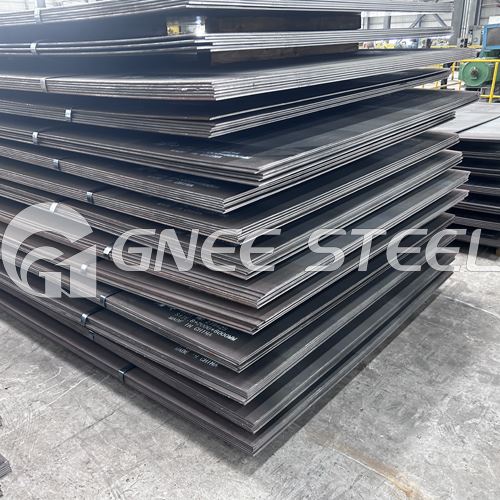

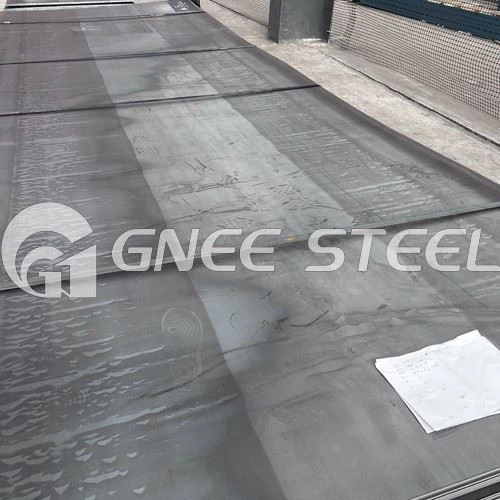

About DIN 17155 Pressure Vessel Steel Plate:
Thickness:8mm-700mm
Length: 3000mm-27000mm or as required
Width: 1500mm-4020mm
Application: Pressure vessel steel plate, Boiler steel plate
Supplementary Technology: hot rolled, controlled rolling, normalizing, annealed tempering, normalizing+ tempering, hardening + tempering, HIC, SSC, SPWHT, Third Party Test.
Surface: Coated or Shot Blasting and Painting.
Delivery state: Hot Rolled, Cold Rolled
Steel Grade: 15Mo3, 13CrMo4-4, 17Mn4, 10CrMo9-10, 19Mn6, HII, HI
DIN 17155 Chemical Composition:
| Steel Grade | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15Mo3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.90 | 0.035 | 0.030 | 0.25 | 0.3 | 0.3 | 0.25-0.35 | ||||
| 13CrMo4 4 | 0.08-0.18 | 0.10-0.35 | 0.40-0.10 | 0.035 | 0.030 | 0.70-1.10 | 0.3 | 0.4-0.6 | |||||
| 17Mn4 | 0.14-0.20 | 0.40 | 0.90-1.40 | 0.035 | 0.030 | 0.02 | 0.25 | 0.3 | 0.3 | 0.10 | 0.01 | 0.03 | 0.03 |
| 10CrMo9-10 | 0.06-0.15 | 0.50 | 0.40-0.70 | 0.035 | 0.030 | 2.00-2.50 | 0.3 | 0.9-1.0 | |||||
| 19Mn6 | 0.20 | 0.50 | 0.90-1.70 | 0.030 | 0.025 | 0.02 | 0.30 | 0.3 | 0.3 | 0.08 | 0.05 | 0.03 | 0.10 |
| HI | 0.16 | 0.35 | 0.40/1.20 | 0.03 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| HII | 0.20 | 0.35 | 0.50-1.30 | 0.035 | 0.030 | 0.02 | 0.25 | 0.3 | 0.3 | 0.10 | 0.01 | 0.03 | 0.03 |
| Ast 41 | 0.20 | 0.35 | 0.45 | 0.045 | 0.045 | 0.3 |
DIN 17155 Mechanical Property
| Steel Grade | 15Mo3 Mechanical Property | |
|---|---|---|
| Thickness | Yield | |
| 15Mo3 | mm | Min Mpa |
| 6-16 | 275 | |
| 16-40 | 270 | |
| 40-60 | 260 | |
| 60-100 | 240 | |
| 100-150 | 220 | |
| 13CrMo4-4 | 6-16 | 300 |
| 16-40 | 295 | |
| 40-60 | 295 | |
| 60-100 | 275 | |
| 100-150 | 255 | |
| 17Mn4 | 6-16 | 290 |
| 16-40 | 285 | |
| 40-60 | 280 | |
| 60-100 | 255 | |
| 100-150 | 230 | |
| 10CrMo9-10 | 6-16 | 310 |
| 16-40 | 300 | |
| 40-60 | 290 | |
| 60-100 | 270 | |
| 100-150 | 250 | |
| 19Mn6 | 6-16 | 355 |
| 16-40 | 355 | |
| 40-60 | 355 | |
| 60-100 | 355 | |
| 100-150 | 355 | |
| HII | 6-16 | 265 |
| 16-40 | 255 | |
| 40-60 | 245 | |
| 60-100 | 215 | |
| 100-150 | 200 | |
| HI | 6-40 | Yield Min 235 |
| Tensile 360-480 | ||
| 40-100 | Yield Min 235 | |
| Tensile 360-480 | ||
DIN 17155 Equivalent Steel Grade:
| DIN 17155 | Material # | EN 10028-2 | NFA 36-205 | UNI 5869 | BS 1501 | UNE 36087 | ASTM | JIS G3115 |
|---|---|---|---|---|---|---|---|---|
| HI | 1.0345 | P235GH | A 37 CP | Fe 360 - 1KW | 161 Gr. 360 / 164 Gr. 360 | A 37 RCI | A 285 Gr. C-A 414 Gr. C / A 516 Gr. 55 | SPV 24 |
| HII | 1.0425 | P265GH | A 42 CP | Fe 410 - 1KW | 161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400 | A 42 RCI | A 414 Gr. E / A 516 Gr. 60 | |
| 17 Mn 4 | 1.0481 | P295GH | A 48 CP | Fe 460 - 1KW | 224 Gr. 490 | A 47 RCI | A 414 Gr. F / A 516 Gr. 65 | SPV 32 |
| 19 Mn 6 | 1.0473 | P355GH | A 52 CP | Fe 510 - 1KW | A 52 RCI | A 414 Gr. G | SPV 36 | |
| 15 Mo 3 | 1.5415 | 16Mo3 | 15 D3 | 15 Mo 3 | 1503 - 243 B | 16 Mo 3 | A 204 Gr. B | |
| 13CrMo 4 4 | 1.7335 | 13CrMo4-5 | 15 CD 4-05 | 14 CrMo 4.5 | 620 Gr. 27 | 14 CrMo 4.5 | A 387 Gr. 12 | |
| 10CrMo 9 10 | 1.738 | 10CrMo9-10 | 10 CD 9.10 | 622 Gr. 31 | A 387 Gr. 22 |
DIN 17155 pressure vessel steel plate is steel for boilers and pressure vessels. In addition to boilers and pressure vessels, DIN 17155 pressure vessel steel is also used to manufacture high-temperature liquid delivery pipes.
Application areas
DIN 17155 steel plate is widely used in gas, petrochemical and other industries, especially suitable for manufacturing boilers, medium and high temperature heat-resistant pressure vessels, heat exchangers, spherical tanks, separators, nuclear reactor vessels, oil and gas tanks, liquid oil storage tanks, hydraulic Bracket etc.
