Is your project only requiring reliable oxidation resistance at 800°C, yet you're still paying exorbitant prices for Inconel 625 alloy bars? Many engineers default to Inconel 625 round bars, but for non-load-bearing furnace components, Nimonic 75 bars (GH3030 / EI435) offer the same high-temperature protection at 30-50% lower procurement costs. As a professional nickel alloy manufacturer, Gnee Steel offers aerospace-grade Nimonic 75 round bars to help you optimize your return on investment (ROI), ensuring superior performance while avoiding the high prices of "over-design."
Comparison of efficiency of Nimonic 75 bar and Inconel 625 bar in furnace applications
Comparison of efficiency of Nimonic 75 bar and Inconel 625 bar in furnace applications
Nimonic 75 and Inconel 625 bars are both high-performance nickel-chromium superalloys suitable for in-furnace applications, but they excel in different aspects of temperature, load, and environment.
What is equivalent to NIMONIC 75?
Other designations that are equivalent to nimonic 75 alloy include the following: DIN 2.4630. DIN 2.4951.
1. Key chemical composition (%) of Nimonic 75 and Inconel 625 alloy bars
| Element | Composition | Function |
|---|---|---|
| Nickel (Ni) | Balance (≥ 75.0%) | Ensures peak thermal stability |
| Chromium (Cr) | 19.0 - 21.0% | Forms the protective anti-oxidation barrier |
| Titanium (Ti) | 0.20 - 0.60% | The secret element that refines grains and prevents high-temp brittleness |
2. Nimonic 75 and Inconel 625 alloy bars - Mechanical properties (annealed)
| Property | Value |
|---|---|
| Yield Strength (Rp0.2) | ≥ 275 MPa |
| Elongation (A5) | ≥ 35% (Superior plasticity for welding and forming into radiant tubes) |
Click to download the GH3030 alloy PDF file now
3. Furnace Body Performance Analysis
Thermal Cycling and Stability (Ni-Cr 75): Ni-Cr 75 (80/20 Ni-Cr) is widely used in industrial furnace components and heat treatment equipment due to its stability at high temperatures and its resistance to oxidation and scaling. It is often the material of choice for structural components that need to withstand thermal shock.
High Temperature Strength (Inconel 625): Inconel 625 is generally preferred if the furnace application involves high mechanical stress. It has excellent creep rupture strength, meaning it can withstand prolonged bending or deformation under high temperature loads.
Corrosive Environments (Inconel 625): For furnaces in corrosive atmospheres (such as chloride, chemical, or marine environments), the Mo/Nb content of Inconel 625 gives it superior corrosion resistance compared to Nimonic 75.
Cost and Availability: Nimonic 75 is generally more cost-effective and is often used in applications where corrosion resistance requirements are not high.
Please request a price quote for GH3030 bars
4. Nimonic 75 vs. Inconel 625 Comparison Summary
The key difference between the two lies in the alloying elements. Inconel 625 contains expensive molybdenum (Mo) and niobium (Nb) to achieve extremely high strength, while Nimonic 75 focuses on the stability of a pure nickel-chromium alloy.
| Feature | Nimonic 75 (The Value Choice) | Inconel 625 (The Premium Choice) | Impact on Your Project |
| Chemistry Base | Ni-20Cr with Ti addition | Ni-Cr-Mo-Nb | 75 is 30-50% cheaper |
| 800°C Oxidation | Excellent (Tenacious Scale) | Excellent | Identical performance at 800°C |
| Tensile Strength | Moderate (≥ 685 MPa) | High (≥ 827 MPa) | 625 is often "Overkill" |
| Machinability | Easy (Solid Solution) | Difficult (Work hardens fast) | 75 saves 20% on labor |
| Best Application | Furnace Muffles & Burners | High-Pressure Piping / Sea Water | Nimonic 75 wins on ROI |
Conclusion: For general furnace hardware requiring heat resistance and cost-effectiveness (e.g., furnace baskets, furnace linings), choose Nimonic 75. For high-load or corrosive components, if strength and service life are priorities, choose Inconel 625.
5. Gnee Steel GH3030 Bar Quality Guarantee
By switching to our GH3030/Nimonic 75 material, you can save on the cost of unnecessary elements (molybdenum and niobium) while maintaining the aerospace-grade quality required for industrial furnaces, heat treatment racks, and gas sampling probes.
Factory Direct Price: Direct wholesale sourcing from China, eliminating middlemen markups.
MRO Spot Supply: Large stock of round bars (Φ10mm to Φ250mm).
Quality Certification: 100% ultrasonic testing (UT) and includes an EN 10204 3.1 Material Testing Certificate (MTC).

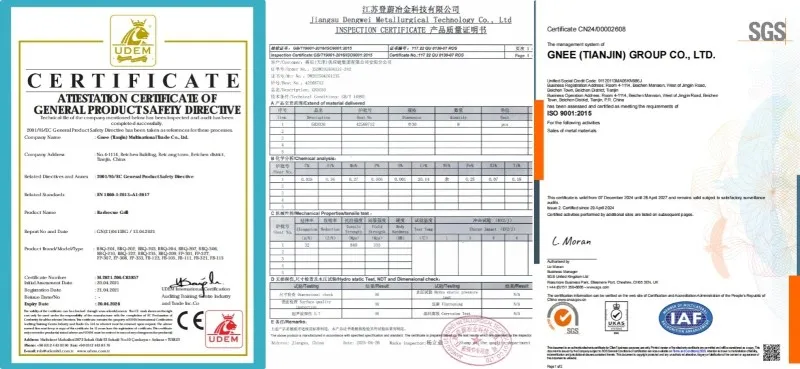

Gnee Steel GH3030 certificate
Contact us now to get the latest export price for GH3030 in 2026
Contact us for a quote on high-performance GH3030 tubing!
Stop paying exorbitant prices for Western brands. We can offer you the same aerospace-grade GH3030 superalloy tubing at a lower price. Our team is ready to provide you with a rapid quote (RFQ) within 12 hours.
Email: [ru@gneesteelgroup.com]
WhatsApp/WeChat: +86 15824687445
Website: [https://www.china-plate-steel.com/]
FAQ
Q1: Can Nimonic 75 truly replace Inconel 625 in 800°C furnace muffles?
A: Yes, in 90% of oxidation-driven applications. If your part is not under extreme mechanical tension or high-pressure gas flow, Nimonic 75 offers the same oxidation resistance as Inconel 625 but at a significantly lower wholesale price.
Q2: Does Nimonic 75 have the same welding properties as 625?
A: Actually, Nimonic 75 is easier to weld. Because it is a simpler solid-solution alloy, it is less prone to weld-cracking and does not require complex post-weld aging. This further reduces your total fabrication cost.
Q3: Is GH3030/EI435 the same as Nimonic 75?
A: Yes. These are the Chinese and Russian equivalents. Our factory produces these grades to meet international standards, ensuring 100% technical compatibility with your existing Nimonic 75 designs.
