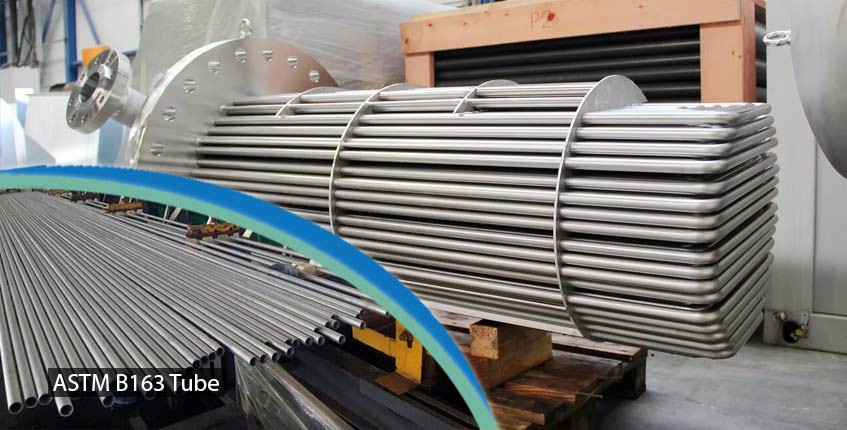

ASTM B163 Inconel 601 Heat Exchanger Tubes
ASTM B163 Inconel 601 Heat Exchanger Tubes
In high-stress environments such as chemical and power generation, heat exchanger components are most susceptible to thermal fatigue and oxidation. Gnee Steel, a leading manufacturer of high-nickel alloy tubing, offers Inconel 601 (UNS N06601) tubing conforming to ASTM B163 standards. This tubing is designed to withstand extreme temperatures and corrosive environments, ensuring the efficiency and safety of your thermal systems.
What is the tensile strength of Inconel 601?
Its high chromium and nickel content gives it excellent oxidation resistance while maintaining high strength. The general mechanical and physical properties of Inconel 601 are as follows: Tensile strength: 110,000 psi (760 MPa); Yield strength: 65,300 psi (450 MPa).
Chemical Composition of ASTM B163 UNS N06601 Tube
| Grade | Cu | Iron | Mn | C | Si | Ni | S | Cr | Al | |
| N06601 | Min | 58.0 | 21.0 | 1.0 | ||||||
| Max | 1.0 | Remainder | 1.0 | 0.10 | 0.50 | 63.0 | 0.015 | 25.0 | 1.7 |
Mechanical Properies of ASTM B163 UNS N06601 Pipe
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) |
| N06601 | ≥80(552) | ≥30(207) | ≥30 |
UNS N06601 Inconel 601 Pipe Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
1. In-depth Understanding: ASTM B163 Standard
For heat exchanger tubes, general standards are insufficient. ASTM B163 is a specific international standard for seamless nickel and nickel alloy condenser and heat exchanger tubes.
Our Inconel 601 tubes strictly adhere to the following stringent requirements:
Dimensional Accuracy: Smaller tolerances in outer diameter (OD) and wall thickness (WT) ensure a perfect fit with the tubesheet.
Surface Integrity: Each tube undergoes specialized cleaning and annealing to remove lubricants and ensure a clean, scale-free surface.
Mandatory Testing: Our ASTM B163 compliance includes flaring, flattening, and hardness testing to guarantee the required ductility for tube-to-tubesheet connections, whether flared or welded.
Get a quote for Inconel 601 heat exchanger tubing project
2. Superior Performance in Petrochemical and Power Projects
Inconel 601 is a "go-to" alloy for critical thermal infrastructure. The addition of aluminum creates a self-healing oxide layer on its surface, resulting in superior performance in the following areas:
Petrochemical projects: Suitable for process heaters, condensers, and reactors in the presence of high-temperature sulfur-containing gases.
Power generation: Superior performance compared to standard stainless steel in boiler tubes and superheaters, particularly in waste-to-energy and biomass power plants.
Waste heat boilers: Its high creep rupture strength allows for thinner tube walls, thereby improving thermal conductivity and overall heat exchanger efficiency.
Download Our Technical Specification for Inconel 601 Tubing
3. Value-Added Services: U-Bends and Finned Tubes
Our services go far beyond simple tube manufacturing. As your integrated partner, we offer specialized custom processing services to shorten your assembly time:
U-Bends: Precision cold bending for U-tube heat exchangers. We perform post-bend stress relief and hydrostatic testing to ensure zero defects at the bending radius.
Finned Tubes: For air-cooled heat exchangers, we offer finned tubes (high-fin or low-fin) to significantly increase the heat transfer surface area.
4. Why Choose Gnee Steel's Global Export Services?
Exporting high-value alloys such as Inconel 601 requires professional logistics services. We support your global sourcing through:
Certifications: Complete factory testing certificates (EN 10204 3.1) and compliance with PED 2014/68/EU requirements.
Gnee Steel inconel 601 certificates
Protective Packaging: Pipes are packaged in reinforced wooden crates with lids and desiccants to effectively prevent damage and moisture during sea transport.
Gnee Steel 601 Alloy Packing
Fast Quotes: Our engineering team can provide detailed technical quotations for complex petrochemical projects within 24 hours.
🛠 Ready to optimize your thermal system?
Partner with a manufacturer who understands heat transfer science to ensure your project achieves the reliability it deserves.
Consult our engineers for pipe selection
FAQ
Q: Why use Inconel 601 instead of Inconel 600 for heat exchangers?
A: While both offer excellent corrosion resistance, Inconel 601 contains aluminum, resulting in significantly better oxidation resistance at temperatures above 1000°C, making it more suitable for high-temperature flue gas environments.
Q: Do you support eddy current testing for thin-walled heat exchanger tubes?
A: Yes, we perform 100% eddy current testing on all tubes conforming to ASTM B163. This is a standard procedure in our quality control system used to detect any microscopic surface or subsurface defects.
Q: Can you supply small quantities for repair and maintenance?
A: While we focus on large projects, we also maintain a stock of standard-sized heat exchangers to meet emergency maintenance and repair (MRO) needs.
Q: What are the mechanical properties of Inconel 601?
A: The most prominent feature of Inconel 601 is its excellent resistance to high-temperature oxidation. This alloy also exhibits good resistance to water corrosion, high mechanical strength, and ease of forming, machining, and welding.
Q: How is the machinability of Inconel 601?
A: It possesses good resistance to water corrosion, high mechanical strength, and ease of forming, machining, and welding. These properties make Inconel 601 a widely used material in heat treatment, chemical processing, pollution control, aerospace, and power generation.
Q: What is the difference between Inconel 617 and 601?
A: Inconel 601 has excellent oxidation resistance and is highly resistant to chloride stress corrosion cracking and alkali corrosion. In contrast, Inconel 617 offers superior metallurgical stability, strength, and oxidation resistance, especially at high temperatures.
