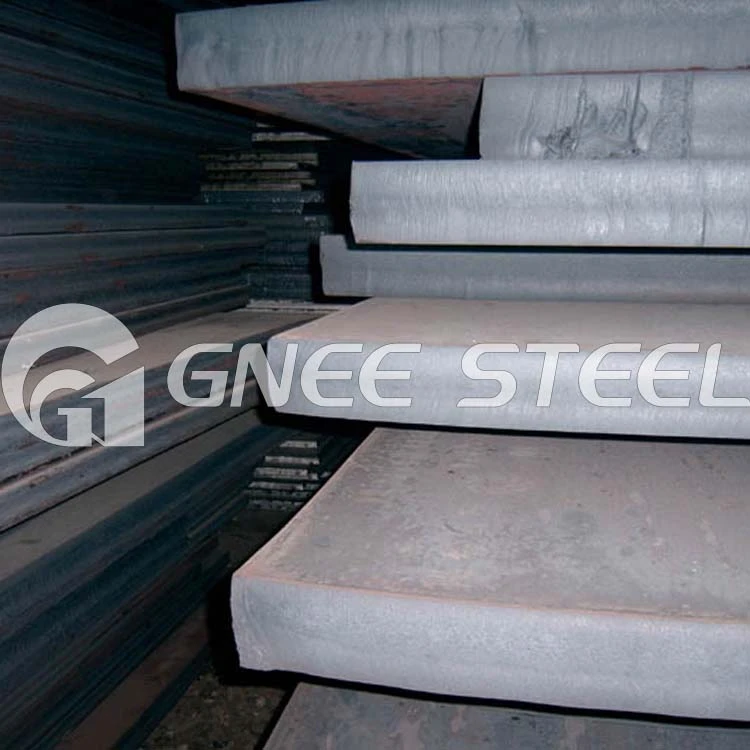

Rina Ship Class Grade A B D E Naval Plate

RINA shipbuilding steel application range RINA shipbuilding steel can be used in the manufacture of the ship's hull structure whose weight is below 10000 tons, and usually do navigation around coastal and river area. Also, RINA shipbuilding steel is widely used in oil platform and offshore platform.

Rina class Grade E/D/B/A naval plate materials

Steel Grade:RINA Grade A,RINA Grade B,RINA Grade D,RINA Grade E

Ship Building Plate Main application:Used primarily in structural applications in marine and shipping industry for barges,ships,small vessels,support structures,and various types of equipment with RINA (Registro Italiano Navale) certificate.

Rolling range: Thickness*Width*Length 3-450mm*1500-4200mm*5000-18000mm

Surface Treatment: Coated,Shop primer painting

Test: Low temperature impacting test,Ultrasonic examination,Normalized,Z-TEST,Z15,Z25,Z35.

RINA Shipbuilding Steel Plate

RINA Grade A Shipbuilding Steel Plate Chemical Composition and Mechanical Property

C max	Si max.	Mn min.	P max	S max	Cu max	Cr max	Ni max
0.21	0.50	0.50	0.035	0.035	0.35	0.30	0.30

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
235	400-520	22

RINA Grade B Shipbuilding Steel Plate Chemical Composition and Mechanical Property

C max	Si max.	Mn min.	P max	S max	Cu max	Cr max	Ni max
0.21	0.35	0.80	0.035	0.035	0.35	0.30	0.30

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
235	400-520	22

RINA Grade D Shipbuilding Steel Plate Chemical Composition and Mechanical Property

C max	Si max.	Mn min.	P max	S max	Cu max	Cr max	Ni max	Als min
0.21	0.35	0.60	0.030	0.030	0.35	0.30	0.30	0.015

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
235	400-520	22

RINA Grade E Shipbuilding Steel Plate Chemical Composition and Mechanical Property

C max	Si max.	Mn min.	P max	S max	Cu max	Cr max	Ni max	Als min
0.18	0.35	0.70	0.025	0.025	0.35	0.30	0.30	0.015

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
235	400-520	22
