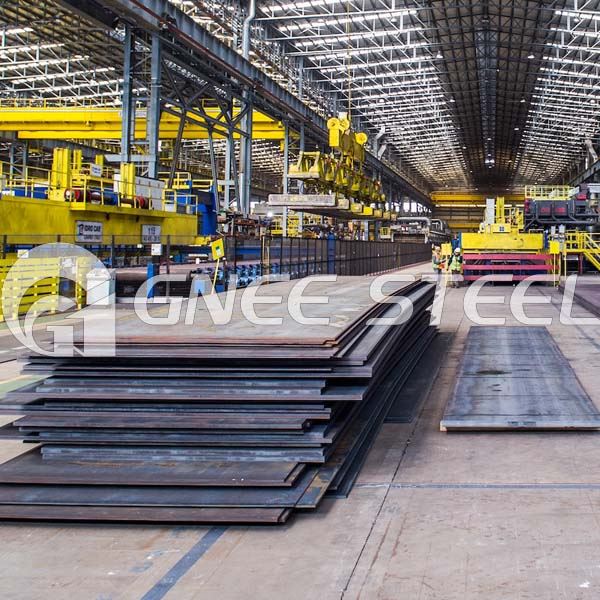

GL Ship Class Steel Plate/Ship steel plate/ocean platform
GL Ship Class Steel Plate Grade:
GL A420 GL D420 GL E420 GL F420
GL A460 GL D460 GL E460 GL F460
GL A500 GL D500 GL E500 GL F500
GL A550 GL D550 GL E550 GL F550
GL A620 GL D620 GL E620 GL F620
GL A690 GL D690 GL E690 GL F690
GL Ship Class Steel Plate Production Size:
Thickness: 4mm- 200mm;
Width: 1000mm- 4000mm;
Length: 4000mm- 12000mm.
Production ability:
100000 Tons Per Month.
Production Way:
Hot Rolled
Technical Requirements & Additional Services for GL GL Ship Class steel plate:
♦ High tension test
♦ Z-Test (Z15,Z25,Z35)
♦ Low temperature impacting test
♦ Shot blasting and Painting,Cutting and welding as per end user's demands
GL Grade A420 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.21 |
0.55 | 1.70 |
0.030 |
0.030 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 420 | 530-680 | 18 |
GL Grade D420 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 420 | 530-680 | 18 |
GL Grade E420 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 420 | 530-680 | 18 |
GL Grade F420 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.18 |
0.55 | 1.60 |
0.020 |
0.020 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 420 | 530-680 | 18 |
GL Grade A460 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.21 |
0.55 | 1.70 |
0.030 |
0.030 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 460 | 570-720 | 17 |
GL Grade D460 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 460 | 570-720 | 17 |
GL Grade E460 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 460 | 570-720 | 17 |
GL Grade F460 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.18 |
0.55 | 1.60 |
0.020 |
0.020 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 460 | 570-720 | 17 |
GL Grade A500 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.21 |
0.55 | 1.70 |
0.030 |
0.030 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 500 | 610-770 | 16 |
GL Grade D500 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 500 | 610-770 | 16 |
GL Grade E500 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 500 | 610-770 | 16 |
GL Grade F500 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.18 |
0.55 | 1.60 |
0.020 |
0.020 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 500 | 610-770 | 16 |
GL Grade A550 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.21 |
0.55 | 1.70 |
0.030 |
0.030 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 550 | 670-830 | 16 |
GL Grade D550 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 550 | 670-830 | 16 |
GL Grade E550 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 550 | 670-830 | 16 |
GL Grade F550 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.18 |
0.55 | 1.60 |
0.020 |
0.020 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 550 | 670-830 | 16 |
GL Grade A620 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.21 |
0.55 | 1.70 |
0.030 |
0.030 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 620 | 720-890 | 15 |
GL Grade D620 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 620 | 720-890 | 15 |
GL Grade E620 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 620 | 720-890 | 15 |
GL Grade F620 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
|
Grade |
Chemical Composition(%) |
||||
|
C |
Mn≥ |
Si |
P |
S |
|
|
GL F620 |
0.18 |
0.90-1.60 |
0.10-0.50 |
0.035 |
0.035 |
|
Grade |
Mechanical Property |
|
|||
|
Tensile Strength(MPa) |
Yield Strength(MPa) |
% Elongation in 2 in.(50mm) min |
Impacting Test Temperature(°C) |
|
|
|
GL F620 |
400-590 |
315 |
22 |
-20 |
|
GL Grade A690 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.21 |
0.55 | 1.70 |
0.030 |
0.030 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 690 | 770-940 | 14 |
GL Grade D690 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 690 | 770-940 | 14 |
GL Grade E690 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.20 |
0.55 | 1.70 |
0.025 |
0.025 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 690 | 770-940 | 14 |
GL Grade F690 Shipbuilding Steel Plate Chemical Composition and Mechanical Property
| C max | Si max | Mn | P max | S max | N max. |
|
0.18 |
0.55 | 1.60 |
0.020 |
0.020 |
0.020 |
| Yield Strength (MPa) min. | Tensile Strength (MPa) | Elongation min. % |
| 690 | 770-940 | 14 |
