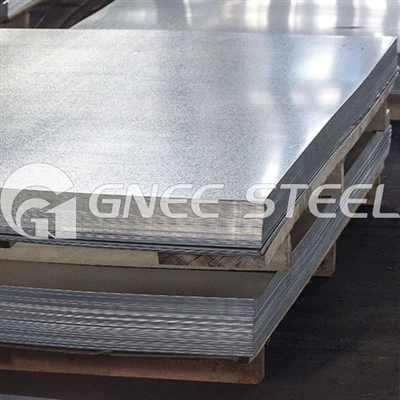

GNEE hot galvanized plate has good quality of the galvanized surface. It shows a uniformed zinc pattern on the surface. GNEE hot galvanized plate has been widely applied to make floor panels, corrugated sheet, plate for building structure, steel plate for household appliance.
Galvanized Steel Specifications
| Thickness | 0.105- 4MM |
| Width | 600 - 1250MM |
| Length | As require |
| Zinc Coating | Z30 - 600g/㎡ |
| ID of Coil | 508/610MM |
| Surface Structure | Regular spangle,Minimum spangle, Zero spangle, Big spangle |
| HRB | Soft Hard (＜60),Medium Hard (60-85), Full Hard (85-95) |
| Surface Treatment | Oiled (O), Chromium (C),Phosphating (P), Spinpass |
| Standard Seaworthy Export Packing | Dust-proof kraft sheet, iron packing, Angle protective, packing belt |
| Coil Weight | 3-5 Tons |
| Standard | ASTM-A653; JIS G3302; EN10147;etc |
| Payment Terms | T/T, LC, Western Union, Paypal, O/A, DP |
| Regular Order | 25 tons or one container, for less quantity, to contact with us for details. |
| Category | Grade of steel | Standard | Application |
|---|---|---|---|
| Steel for common usage | SGCC, SGHC | Q/HG 007 | Thickness: 0.3-4.0mm Width: 900-2030mm Zinc coating: 60-450g/m2 |
| DX51D+Z | GB/T 2518 | ||
| CSA, CSB | Q/HG 017 | ||
| Common structural steel | SS33, SS37, SS40 | Q/HG 017 | |
| SGH340, SGH400 | Q/HG 007 | ||
| S250GD+Z, S280GD+Z | GB/T 2518 | ||
| G250-G350 | Q/HG 037 | ||
| High strength structural steel | S320GD+Z, S350GD+Z, S390GD+Z, S450GD+Z, S550GD+Z | GB/T 2518 | |
| SGC490, SGC540, SGC570 | Q/HG 007 | ||
| SS50-1, SS60 | Q/HG 017 | ||
| G450, G550 | Q/HG 037 | ||
| Punching steel | DX52D+Z-DX57D+Z | GB/T 2518 | Thickness: 0.3-2.5mm Width: 900-2030mm Zinc coating: 60-450g/m2 |
| IF+P steel | HX180YD+Z-HX260YD+Z | ||
| BH steel | HX180BD+Z-HX300BD+Z | ||
| HSLA steel | HX260LAD+Z-HX420LAD+Z | ||
| DP steel | HC260/450DPD+Z-HC450/780DPD+Z | ||
| TRIP steel | HC430/690TRD+Z, HC470/780TRD+Z |
