1. Standard: AISI, ASTM, BS, DIN, GB, JIS
2. Grade: SPCC, DC01, DC02, DC03, DC04, ST12, ST13, ST14, ST15, SPCD, SPCE
3. Width: 1219mm
4. Thickness: 0.4mm, 1mm, 1.5mm, etc.
GNEE's various types of high-strength and stamping steels, the grades are as follows:
Cold rolling carbon steel, carbon structural steel, low carbon steel, steel plates and steel strips for stamping.
SPCC, SPCD, SPCE, SPCF(SPCEN), SPCG, DC01, DC03, DC04, DC05, DC06, B280VK, ST37-2G, ST44-3G, ST52-3G
DC01 steel (1.0330 material) is a European standard cold-rolled high-quality low carbon steel product for cold forming. In the BS and DIN EN 10130 standards, other steel grades are included: DC03 (1.0347), DC04 (1.0338), DC05 (1.0312), DC06 (1.0873) and DC07 (1.0898).
DC01 is an ordinary cold plate, and DC03 is a cold plate for stamping. The chemical composition and mechanical properties of the two are different.
Product parameters
|
Name |
Cold Rolled Steel Coil |
|
Full name |
dc01 dc03 Cold Rolled Carbon steel coil |
|
Standard |
AISI, ASTM, DIN, GB, JIS, BS, EN |
|
Material |
SPCC, SPCD, SPCE, ST12-15, DC01-06 etc |
|
Thickness |
0.20-3.0mm |
|
Width |
40-1250mm |
|
Surface |
Oil/dry/passivation/pickling/black annealing/bright annealing |
|
Coil ID |
508mm, 610mm |
|
Coil Weight |
3-10 tons |
|
Application |
Machine/Container/Manufacture/Shipping Building/Bridge and other fields |
|
Export to |
Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Italy, India, Egypt, Oman, Malaysia, Kuwait, Canada, Vietnam, Peru, Mexico, Dubai, Russia, etc. |
|
Chemical Composition |
|||||
|
Grade |
C |
Mn |
P |
S |
Alta |
|
DC01, SPCC |
≤0.12 |
≤0.60 |
≤0.045 |
≤0.045 |
≥0.020 |
|
DC02, SPCD |
≤0.10 |
≤0.45 |
≤0.035 |
≤0.035 |
≥0.020 |
|
DC03, SPCE |
≤0.08 |
≤0.40 |
≤0.030 |
≤0.030 |
≥0.020 |
|
DC04, SPCF |
≤0.06 |
≤0.35 |
≤0.025 |
≤0.025 |
≥0.015 |
|
Mechanical Properties |
|||||
|
Grade |
RCL(Mpa) |
RM(MPa) |
A80mm(%) |
R90 |
N90 |
|
DC01 |
140~280 |
270~410 |
≥28 |
||
|
DC02 |
140~240 |
270~370 |
≥34 |
≥1.4 |
|
|
DC03 |
120~210 |
270~350 |
≥38 |
≥1.8 |
≥0.18 |
|
DC04 |
120~180 |
270~330 |
≥40 |
≥2.0 |
≥0.20 |
|
SPCC |
130~300 |
270~410 |
|||
|
SPCD |
120~240 |
270~370 |
≥1.3 |
||
|
SPCE |
120~210 |
270~350 |
≥1.8 |
≥0.18 |
|
Cold rolled uses hot-rolled steel coils as raw materials, which are pickled to remove scale and then cold rolled continuously. The finished product is hard rolled coils. Due to the cold work hardening caused by continuous cold deformation, the strength, hardness, and toughness of the hard rolled coils increase. The index drops, so the stamping performance will deteriorate and it can only be used for parts with simple deformation. Cold rolling is made from hot-rolled plates at room temperature. Although rolling will also heat up the steel plate during the processing, it is still called cold rolling.
Since hot rolling undergoes continuous cold deformation, cold rolling has poor mechanical properties and too high hardness.
It must be annealed to restore its mechanical properties. Those without annealing are called hard rolled coils. Hard rolled coils are generally used to make products that do not require bending or stretching.
Hard rolled coils can be used as raw materials in hot-dip galvanizing plants because hot-dip galvanizing units are equipped with annealing lines. The weight of hard rolled coils is generally 6 to 13.5 tons. The steel coils are continuously rolled on the hot-rolled pickled coils at room temperature. The inner diameter is 610mm.
Cold rolling is processed and rolled on the basis of hot rolled coils. Generally speaking, it is a process of hot rolling--pickling--cold rolling.
DC01 DC03 steel coil show:
advantages:

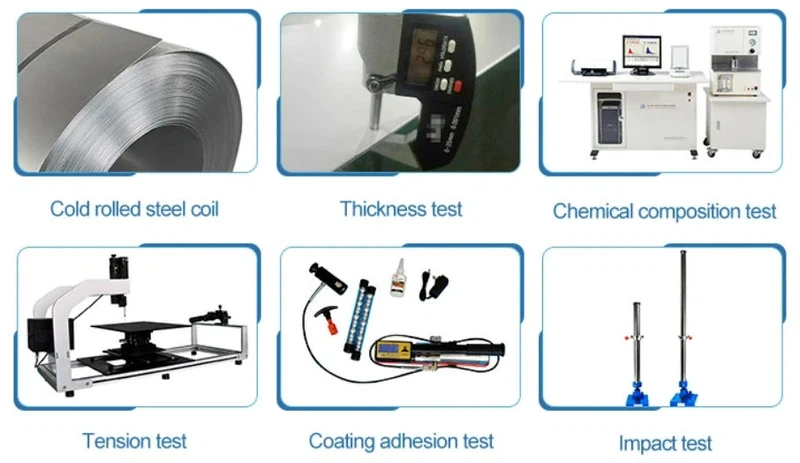

DC01 DC03 coil test:
Cold rolled steel product quality certificate:
A professional galvanized coil supplier with 200 employees: GNEE
FAQ:
Q1. What are your company's main products?
A1: Our main products are dc01, dc02, dc03 cold rolled steel plates, etc.
Q2. How do you control quality?
A2: Factory test certification is provided upon shipment, and third-party inspection is available.
Q3. What are your company's strengths?
A3: We have many professionals, technicians, more competitive prices and the best after-sales service than other cold-rolled galvanized steel companies.
Q4: What are the packaging terms?
A4: Generally, we pack the goods into bundles or rolls with rods or straps, we can also pack the goods according to customers' requirements.
Q5: What is your delivery time?
A5: For inventory, we can ship the goods to the loading port within 7 days after receiving your deposit
For the production cycle, it usually takes about 15 days to 30 days after receiving the deposit.
Q6. Can you provide samples?
A6: We can provide stock samples for free as long as you contact us.
Customized samples will take about 5-7 days.
